SuperSimplex M
Pumps mechanical regulator


• Electro-mechanical regulator for the extremely simple creation of pressurization units.
The most essential characteristic of SuperSimplex M are:
• A single product for the automation of electro-pumps with head of between 1.5 and 8 bar
• It stops the pump protecting it against dry running
• Automatic restarts each 15' or 30'
• High water temperature protection (55°C) and automatic restart (45°C)

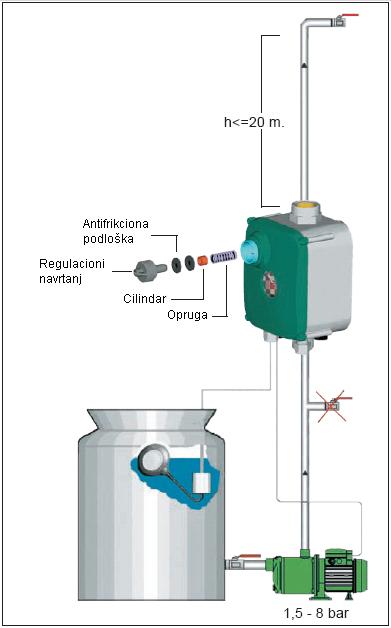

SuperSimplex M is set at the factory for the control of pumps with head of 4-8bar and for re-starting at 1.5bar. In such conditions no setting is needed, simply discharge the air from the system keeping the service button pressed and SuperSimplex M is ready to control the pump.
• Dry running protection and triggers endless restart
• Any mounting position available

FUNCTION:
SuperSimplex monitors the pressure that exits inside the piping and the presence of flow. At the minimal pressure P(r), set up for the system, the SuperSimplex activates the pump. The flow gauge inside the SuperSimplex keeps the pump in operation; when the water colection operation is over and with maximum pressure, SuperSimplex acts to disenable the pump with delay of few seconds.
Warning: SuperSimplex does not limit the max pressure of the pump, if necessary install a pressure reducer downstream.

TYPE

Super Simplex M

Equiped with

  • Pressure gauge
  • Thermal protection (55°C)

Mounting position

Horizontal / Vertical

Input / Output

1'' male / 1'' female

Pump power supply

250 V ~ 50¸60Hz

Max. pump power

2000W at 250V~ / 1000W at 130V~

Max. overpressure

12 bar

Operating temperature

0 - +50°C

Protection degree

IP 54

Working pressure (s)

1.5 - 8 bar

Restart pressure (r)

0.4 - 2.2 bar

Min. differential pressure (s-r)

1.5 bar

Max. flow

120 l / min

Body/Cover material

PoliPropilen / ABS

Dimensions mm h/w/d/ Weight

250 / 145 / 155 / 900g

Types

MPM3

MPM6

MPT3

MPT6

Power Supply

Single phase

Single Phase

Three Phase

Three Phase

Factory Setting

2 – 3 bar

4 – 5.5 bar

2 – 3 bar

4 – 5.5 bar

Range

1.5 – 6 bar

4 – 10.5 bar

1.5 – 6 bar

4 – 10.5 bar
