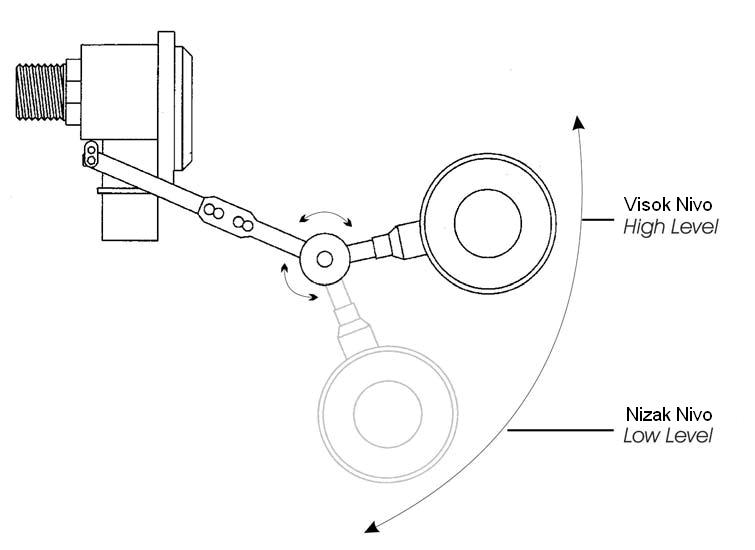

QuickStop is a hydraulic level regulator of advanced design that eliminates the classic defects of such devices.
Its main feature and an intrinsic part of the patent (Pat.FI/96/A/000083) is the rapidity of operation of the system which goes from open to closed and viceversa in a fraction of a second, avoiding long noise periods and the dripping due to choked filling.
Thanks to its servo-controlled closure device, a small float is sufficient for any pipe diameter and the closure strength increases as the entry piping pressure increases.
|
 TYPE  |
 QUICKSTOP  |
|
 Material  |
 Non-toxic polikarbonat (PC)  |
|
 Operating temperature  |
 0°C - +50 °C  |
|
 Storage temperature  |
 -20°C - +80°C  |
|
 Working pressure  |
 0.2 - 6 bar  |
|
 Overpressure  |
 10 bar  |
|
 Bolts and screws  |
 stainless steel  |
|
 equiped with inlet filter  |
|
