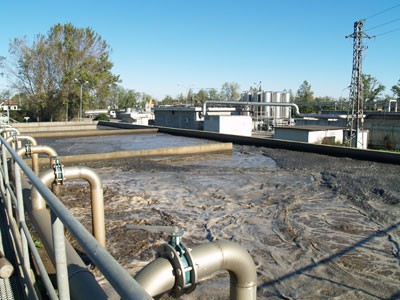

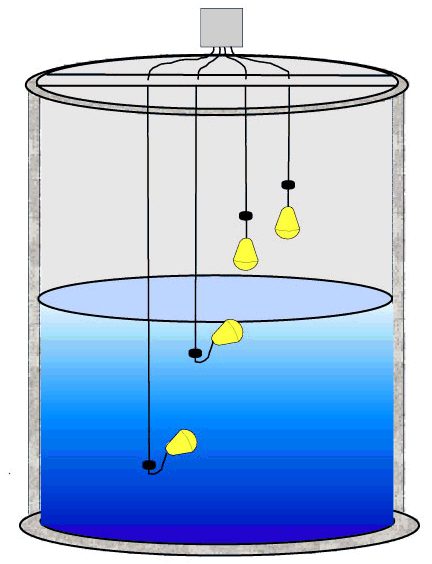

• Mac5 is an immersed tilting level regulator device. Its principal feature being its heavy body, which is also bulky and free of any irregularity, making it ideal for use in sewage water, in industrial waste water with suspended agglomerate residues and in tumultuous water.
• The polypropylene body is made with a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure perfect sealing capacity against infiltrations.
|
CHARACTERISTICS |
MAC5 |
|
Microswitch electrical features |
20(8)A – 250V |
|
Certificates |
ENEC/CE 10(8) 250V |
|
Operating temperature |
0°C - +50 °C |
|
Storage temperature |
-20°C - +80°C |
|
Protection degree |
IP 68 |
|
Switch angle |
±45° |
|
Dimensions |
mm 117x222 (Æxh) |
|
Weight |
1100 g |
|
Volume |
cm3 1000 |
|
Max. depth level |
2 bar |
|
Housing |
Non – toxic polipropilen (PP) |
|
Colouring |
Non – toxic |
|
Standard cable |
|
MAC3
5309Kb
MAC3 Regulaciona tehnika
1322Kb
