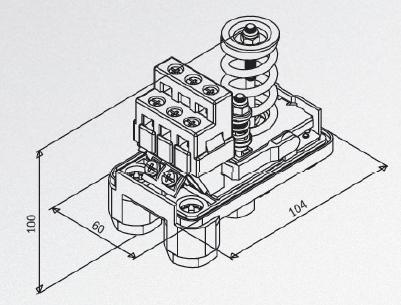

PMA 12 PTA 12
Pressure switches for air compressors


• Pressure switches for use with air compressors
• The switch ensures automatically starting and stopping of the compressor according to the preset pressure values
• Electrical contacts: normally closed, made of brass alloy with Ag-Ni surfacing
• Terminals with M4 screws and 8x8 mm pressure dice
• Oil-resistant NBR rubber membrane with textile insert
• ¼" F galvanised steel hydraulic connection
• Standard protection degree IP 44
• Max ambient temperature 55°C
• Tear resistant cable clamps
• Cover with on/off button
• Air-relief valve for 6 mm diameter pipe with delayed closing system for model PMA single phase, and with instant-closing action for model PTA three phase

APPLICATIONS: Pressure switches for air compressors

TECHNICAL DATA

PMA/12

PTA/12

Pressure range

3 -12 bar

3 -12 bar

Factory settings

6 – 8 bar

6 – 8 bar

Min differental

1.5 bar

1.5 bar

Max differental

5 bar

5 bar

Rated current

16(10) A

16(10) A

Rated voltage

250 V

500 V
