LP3d
Low pressure switch


• Pressure switch for the protection of water systems (autoclave and fi re-fi ghting systems) and pneumatic systems (control circuits under pressure)
• The device interrupts the electric connection between the line and the load when the pressure decreases below the established value (stop pressure)
• In the autoclave systems it is matched in series with a PM/5 pressure switch in order to protect the electric pump from dry running
• The reset is automatic when the pressure becomes again higher than the start value or when pressing the reset button

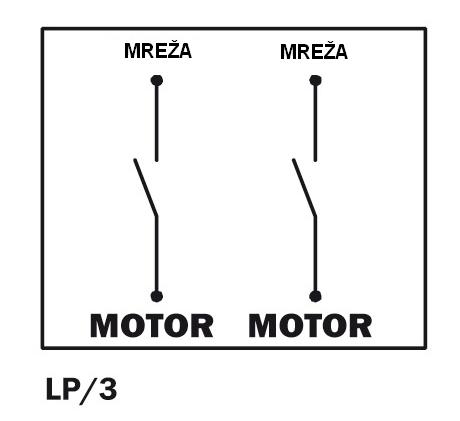

• Double electric contact: normally open, made of brass alloy with Ag-Ni surfacing
• Terminals with M4 screws and 8x8 mm pressure dice
• NBR rubber membrane with food grade textile insert
• ¼" F hydraulic connection made of galvanised steel
• Standard protection degree IP 44
• Max ambient temperature: 55°C
• Tear resistant cable clamps

APPLICATIONS: Pressure switches for water pumps, Dry running protection

TECHNICAL DATA:

LP/3

LP/3-18

Range of input pressure

0.1-0.4 bar

0.3-2.0 bar

Range of output pressure

0.5-0.9 bar

0.8-2.6 bar

Factory settings

0.1-0.5 bar

0.5-0.95 bar

Rated current

16 (10) A

16 (10) A

Power supply

250 V

250 V
